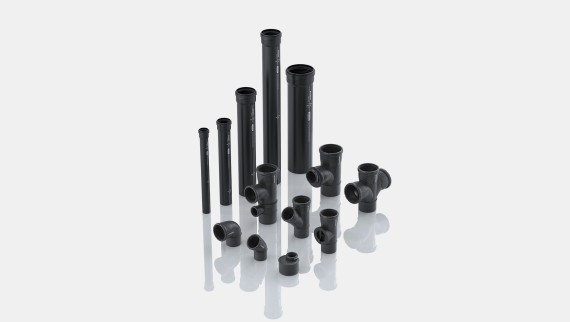

Geberit Silent-Pro Simple plug-in system for outstanding sound insulation
Sophisticated drainage system
Geberit Silent-Pro is the ideal piping system solution for stacks and floor connections in construction projects with high sound insulation requirements.
Geberit Silent-Pro applications:
- Building drainage
- Conventional roof drainage system (with retaining claw)
Why choose Geberit Silent-Pro?
Geberit Silent-Pro system description
Dimensions
Fittings
Accessories
Technical data
Dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 50 | 50 x 3.0 |
| 70 | 75 x 3.8 |
| 90 | 90 x 4.3 |
| 100 | 110 x 4.5 |
| 125 | 125 x 5.0 |
| 150 | 160 x 6.0 |

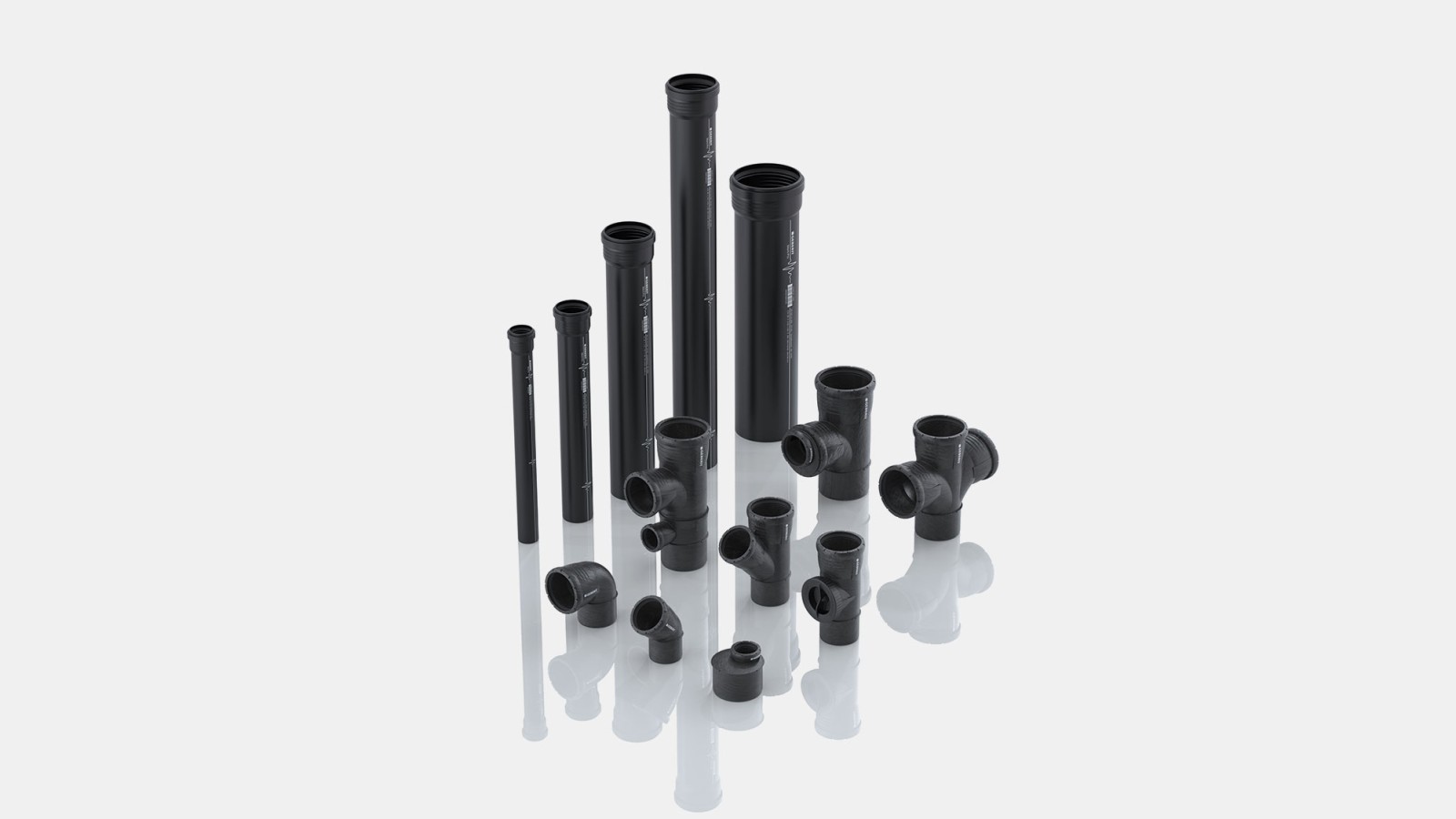

Fittings
Versatile drainage system for quiet installations
- Large selection of fittings
- Noise reduction thanks to reinforced material in the impact zones
- Diverse special fittings

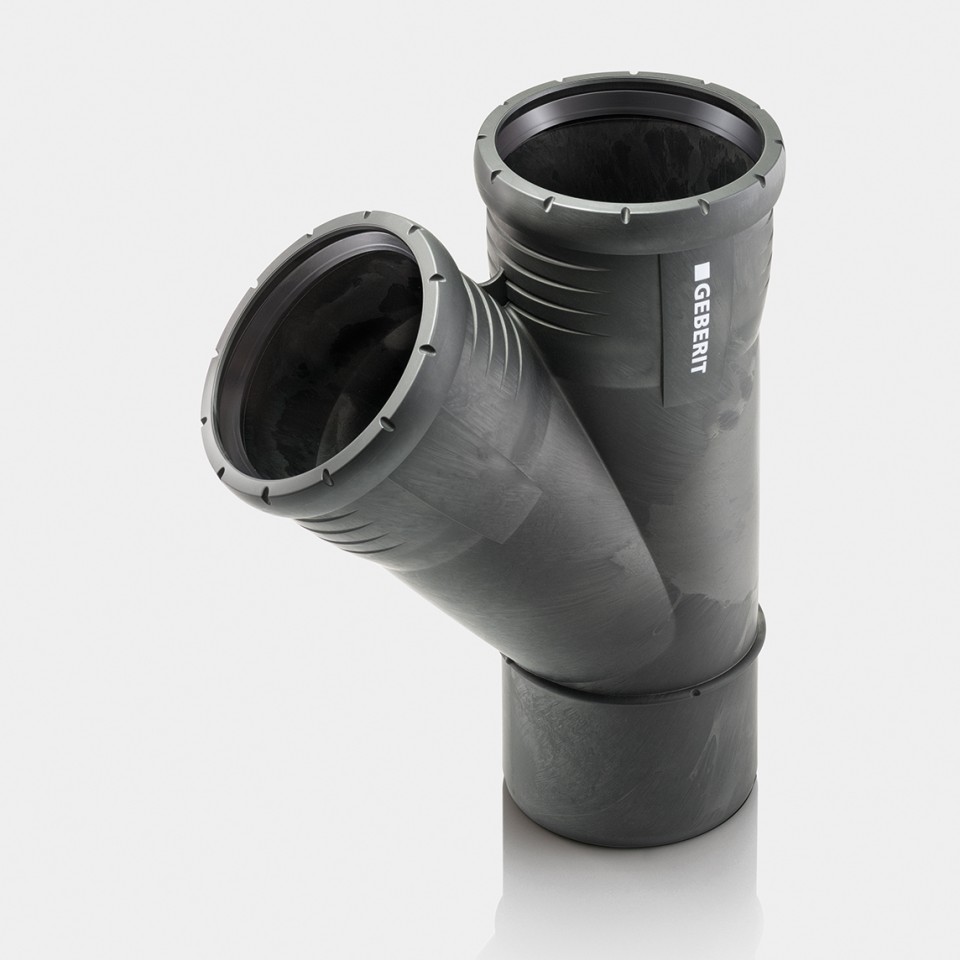

- Branch fittings with swept entry

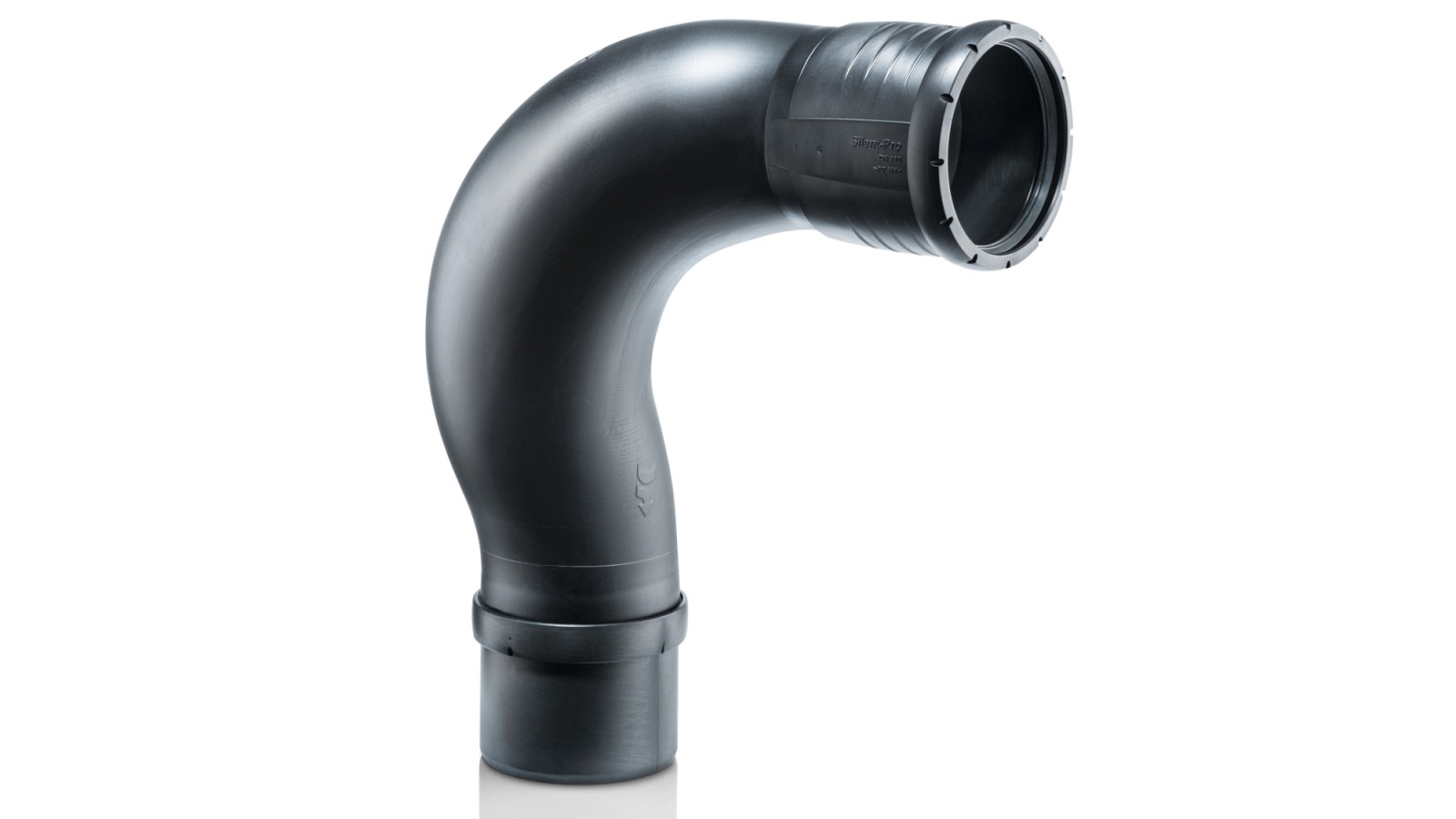

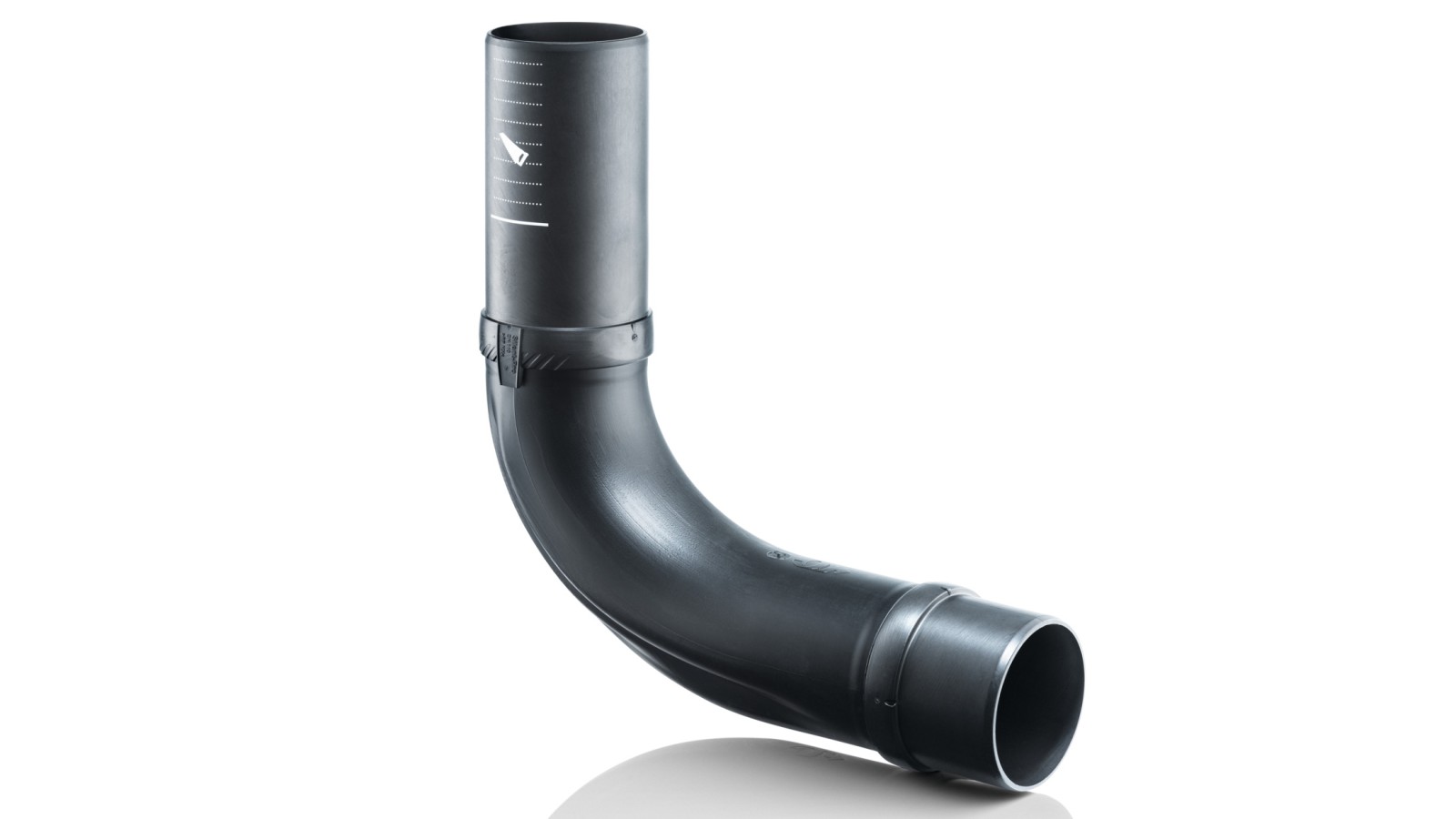

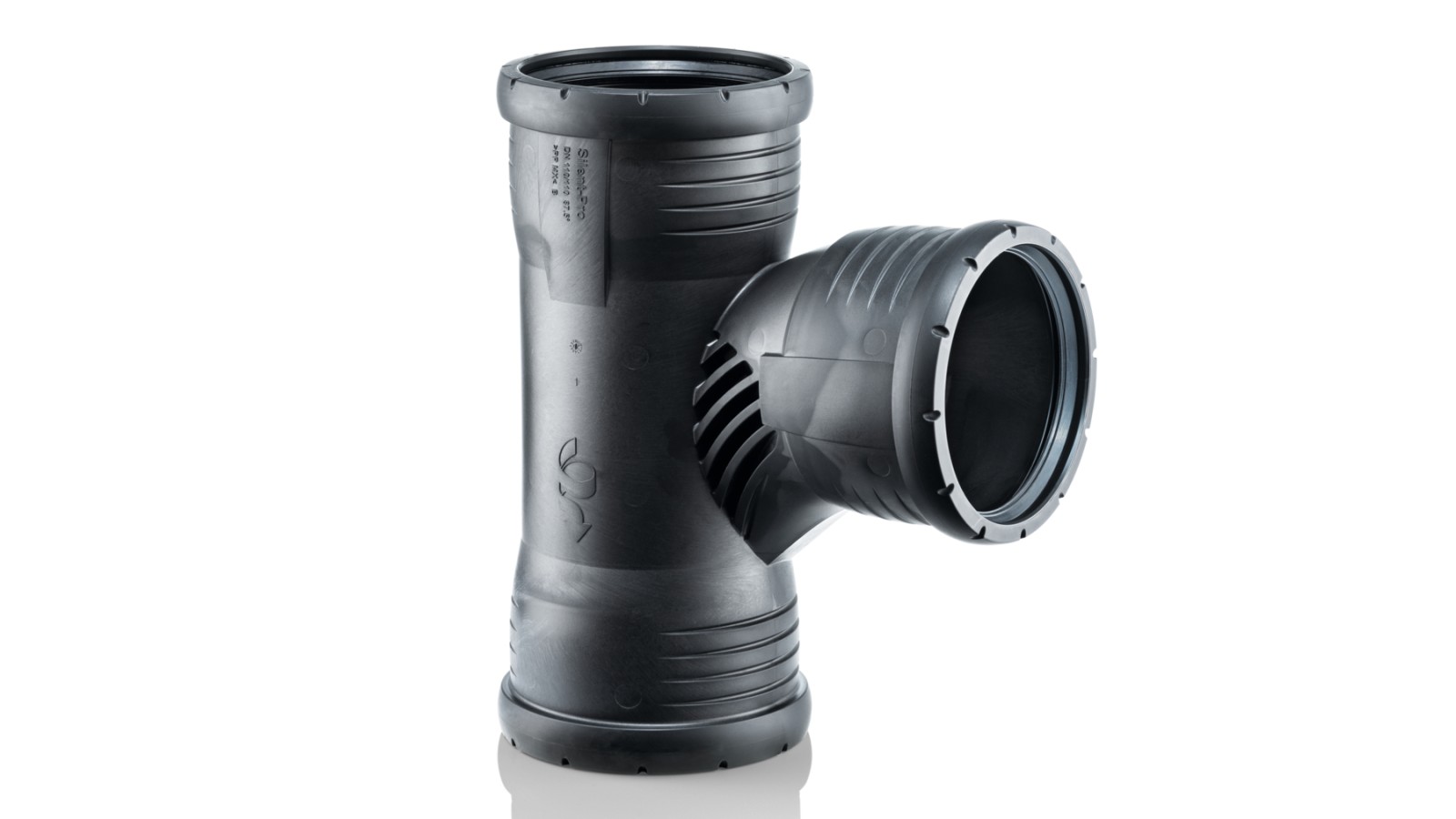

Geberit Silent-Pro SuperTube
The space-saving drainage system for multifamily houses
- Simplified planning
- Lean system structure
- Higher discharge capacity
- Easier installation process
- Less material used
Accessories
Fire protection for Geberit Silent-PP

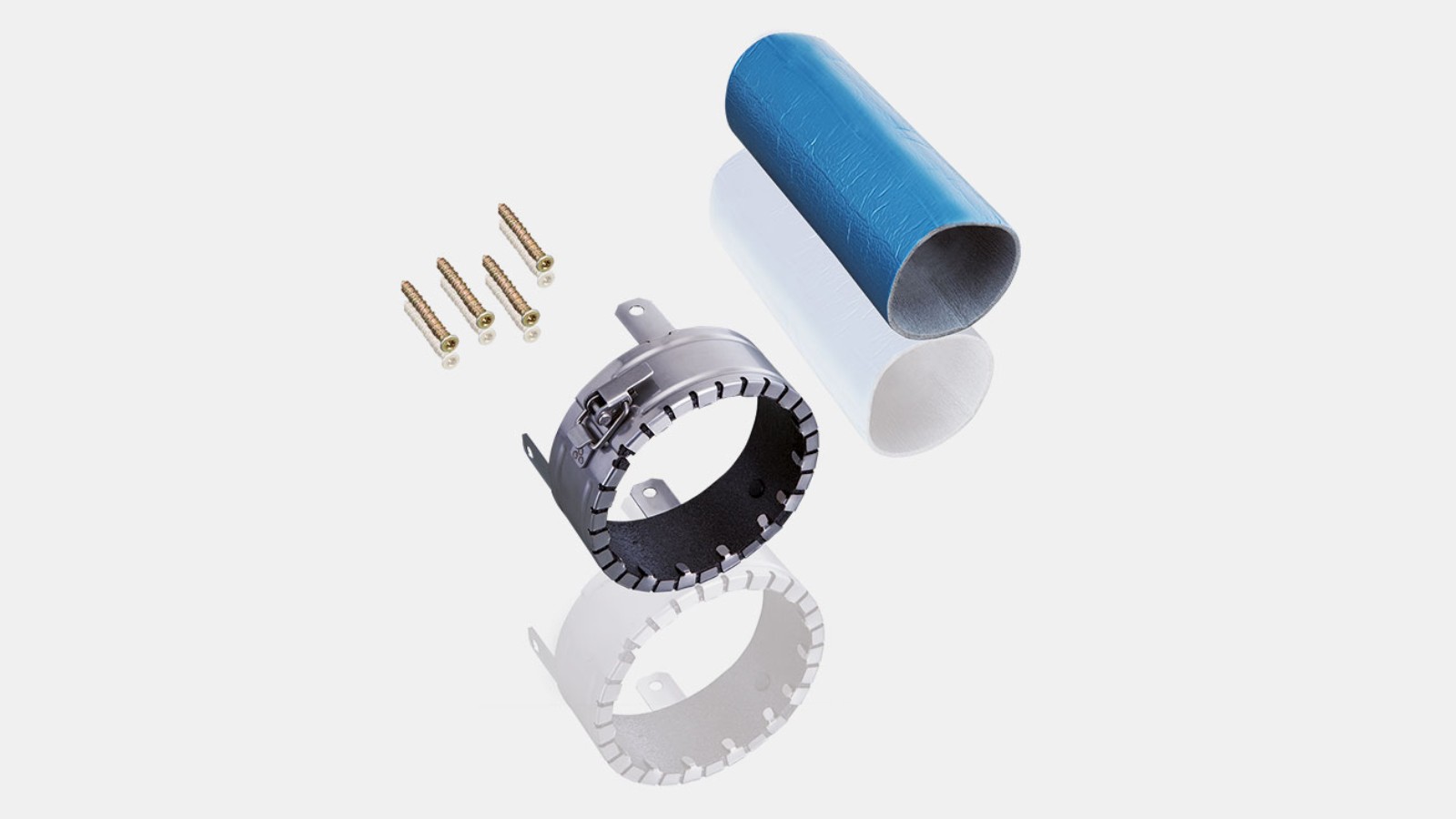

Fire tests were carried out in accordance with the standard EN 1366-3 for over 50 different installation situations. In combination with the Geberit fire protection sleeve RS90 Plus EN, the plug-in system Geberit Silent-Pro is approved for a fire resistance of 90 minutes (ETA/ETB).

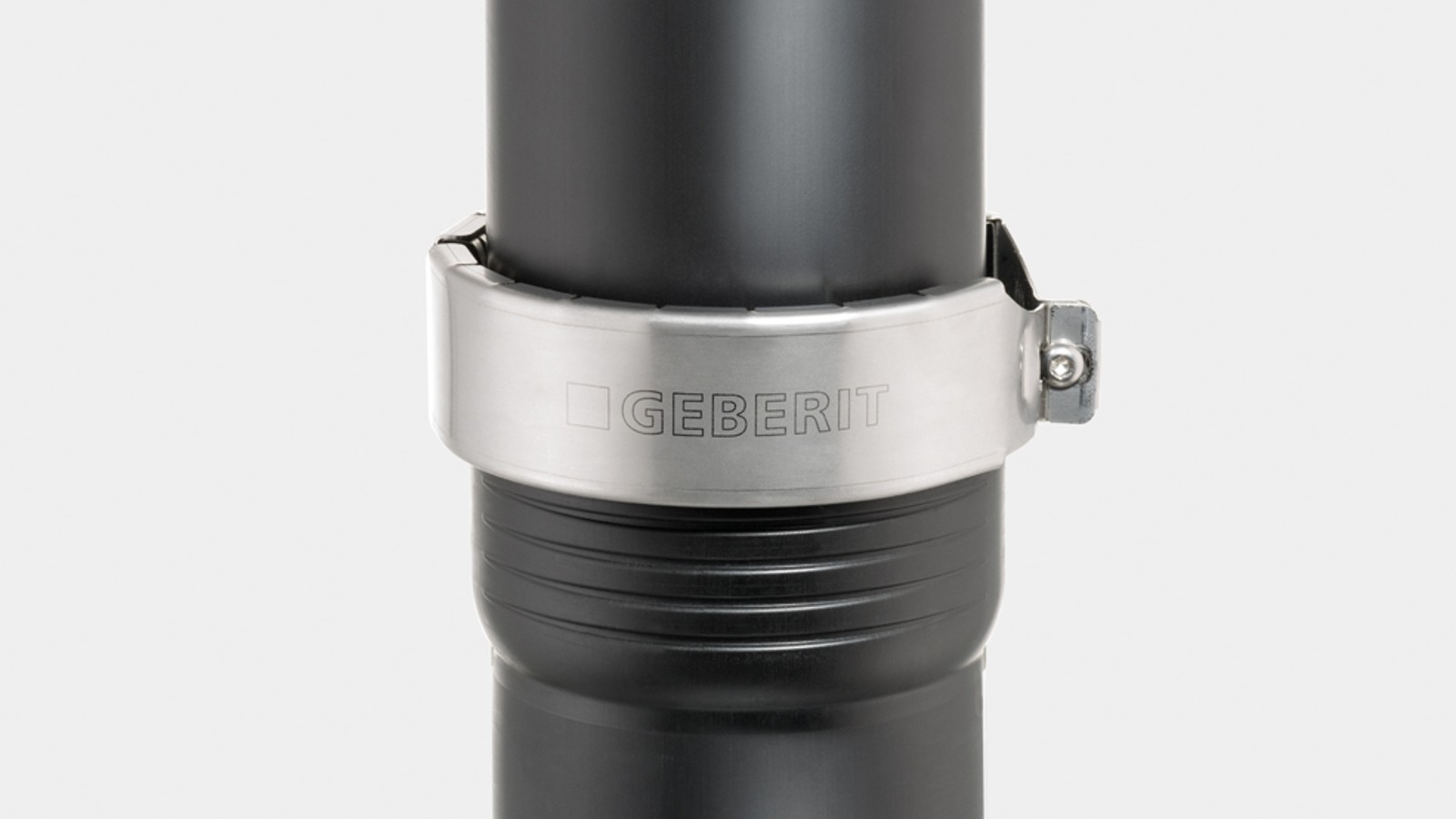

2-bar plug-in solution

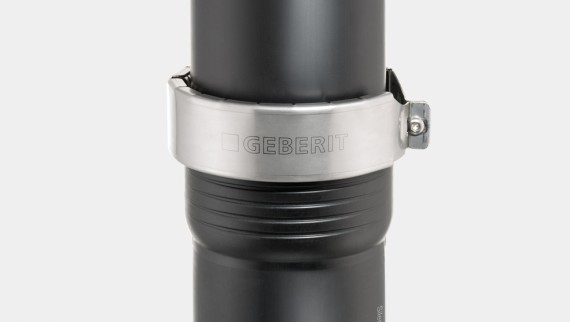

A lengthways non-positive plug connection is established with the Geberit retaining claw. Geberit Silent-Pro can therefore be used with an internal pressure of up to 2 bar for rainwater pipes.
Technical data
| Geberit Silent-Pro | |
|---|---|
| Material | PP-MX |
| Coefficient of linear expansion | 0.08 mm/(m K) |
| Absorption of linear expansion | Takes place inside the ring seal socket and does not require any additional measures |
| Installation temperature | -10 °C to 40 °C |
| Permanent load application temperature | -10°C to 90°C |
| Chemical resistance | Standard household chemicals |
